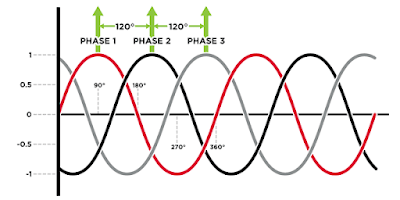

Three Phase Circuit

Three-phase circuits offer several advantages over single-phase circuits:

1. Higher Power Capacity:

Three-phase circuits can deliver more power compared to single-phase circuits of the same voltage and current. This is especially important for industrial applications and large machinery where high power is required.

2. Smoother Power Delivery:

Three-phase power provides a more constant and smoother power delivery, which reduces voltage fluctuations and results in better performance for electric motors and machinery.

3. Efficiency:

Three-phase motors and equipment are often more efficient than their single-phase counterparts. They have a better power-to-weight ratio and are generally smaller and lighter for the same power output.

4. Balanced Loads:

Three-phase systems can support balanced loads, where the current is evenly distributed among the phases, reducing the risk of overloading and improving system stability.

5. Reduced Voltage Drop:

Due to the distribution of power over three phases, voltage drop is typically lower in three-phase circuits, making them more suitable for long-distance transmission of electricity.

6. Lower Current:

Three-phase systems require less current to deliver the same amount of power as a single-phase system. This means smaller conductors and reduced losses due to lower current.

7. Reduced Harmonics:

Three-phase power has fewer harmonics, which are undesirable distortions in the electrical waveform. This results in cleaner power and fewer issues with sensitive electronics.

8. Cost-Efficiency:

In some cases, three-phase power can be more cost-effective for industrial and commercial applications, as it allows for smaller wire sizes and reduces installation costs.

9. Motor Performance:

Many industrial motors are designed to operate on three-phase power, and they operate more efficiently and with less vibration and noise when supplied with three-phase power.

While three-phase systems offer many advantages, they are not always necessary or practical for residential or small-scale applications, where single-phase power is typically sufficient.
